Deptford Station Glass Facade — ClimaGuard Premium2 Laminated Glazing

Overview

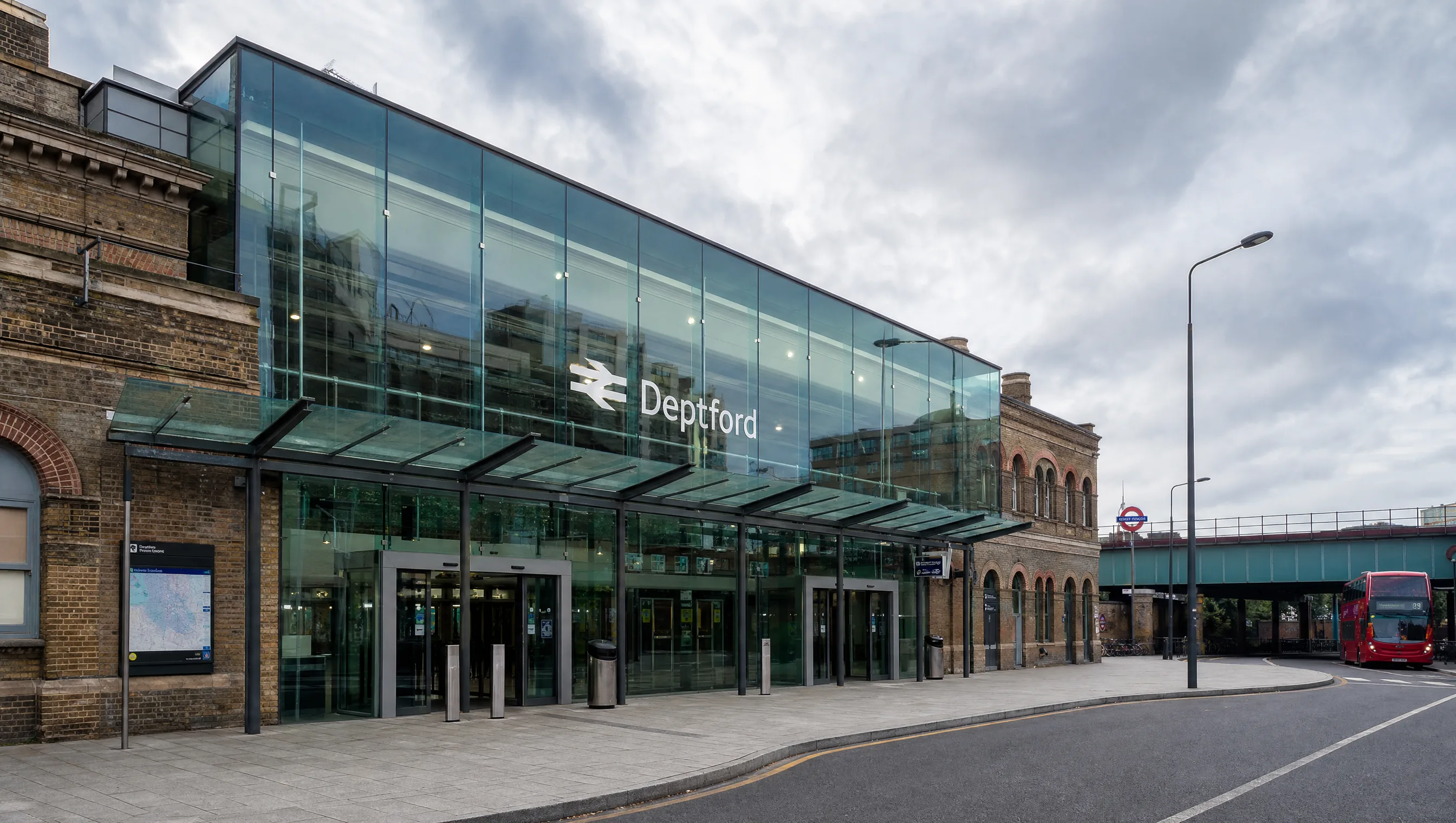

A daylit glass concourse for a Victorian station

Deptford Station is one of London's oldest suburban railway stations. Its retrofit called for a modern glazed envelope that would open the concourse to daylight while sitting respectfully against the listed Victorian brickwork. BlueCrest delivered the structural glass curtain wall and the frameless entrance canopy as a complete supply-and-install scope.

The facade is glazed in ClimaGuard Premium2 laminated glass in a 4.4.2 build-up — two 4 mm panes bonded with a twin PVB interlayer and finished with a Premium2 low-emissivity coating. The result is a clear, safe and thermally efficient glass skin: high light transmission for a bright concourse, laminated safety and acoustic damping for a busy transport hub, and low-E performance to control heat loss.

The Glass

ClimaGuard Premium2 Laminated 4.4.2

Why this laminated low-E glass was specified for the Deptford Station facade.

ClimaGuard Premium2 Low-E

A high-performance low-emissivity coating that reduces heat loss through the glazing while keeping high visible-light transmission.

Laminated 4.4.2 Build-up

Two 4 mm panes bonded with a twin PVB interlayer — a laminated safety glass that holds together if broken.

Safety & Security

Laminated construction resists penetration and stays in the frame — the right choice for a high-traffic public station.

Acoustic Comfort

The PVB interlayer damps noise from trains and the street for a calmer concourse.

Daylight & Clarity

High light transmission floods the retrofit concourse with natural daylight over the historic platforms.

Structural Glazing & Canopy

Delivered as a structural glass curtain wall plus a frameless entrance canopy, engineered and installed on site.

Project Specification

At a Glance

Project

Deptford Station, London — heritage retrofit

Glass

ClimaGuard Premium2 laminated, 4.4.2 (4mm + twin PVB + 4mm)

Performance

Low-E, laminated safety & acoustic glazing

Systems

Structural glass curtain wall + frameless entrance canopy

Scope

Engineering, supply, fabrication & on-site installation

Delivered by

BlueCrest Trading S.A.E.

FAQ

Frequently Asked Questions

What glass was used at Deptford Station?

The facade is glazed in ClimaGuard Premium2 laminated glass in a 4.4.2 build-up — two 4 mm panes with a twin PVB interlayer and a Premium2 low-E coating — giving a clear, safe, low-emissivity and acoustically damped glass skin.

What does a 4.4.2 laminated build-up mean?

4.4.2 describes the make-up: a 4 mm glass pane, then two layers of PVB interlayer, then another 4 mm pane, bonded into a single laminated safety glass roughly 8.8 mm thick.

Why laminated low-E glass for a station?

A busy public station needs safety glass that stays intact if broken, acoustic damping against train and street noise, and thermal control — laminated ClimaGuard Premium2 delivers all three in one glazing.

Can BlueCrest deliver a similar structural glass facade?

Yes. BlueCrest engineers, supplies and installs structural glass curtain walls, canopies and laminated low-E facades for stations, commercial and public buildings. Share your drawings for a proposal.
